Product Description

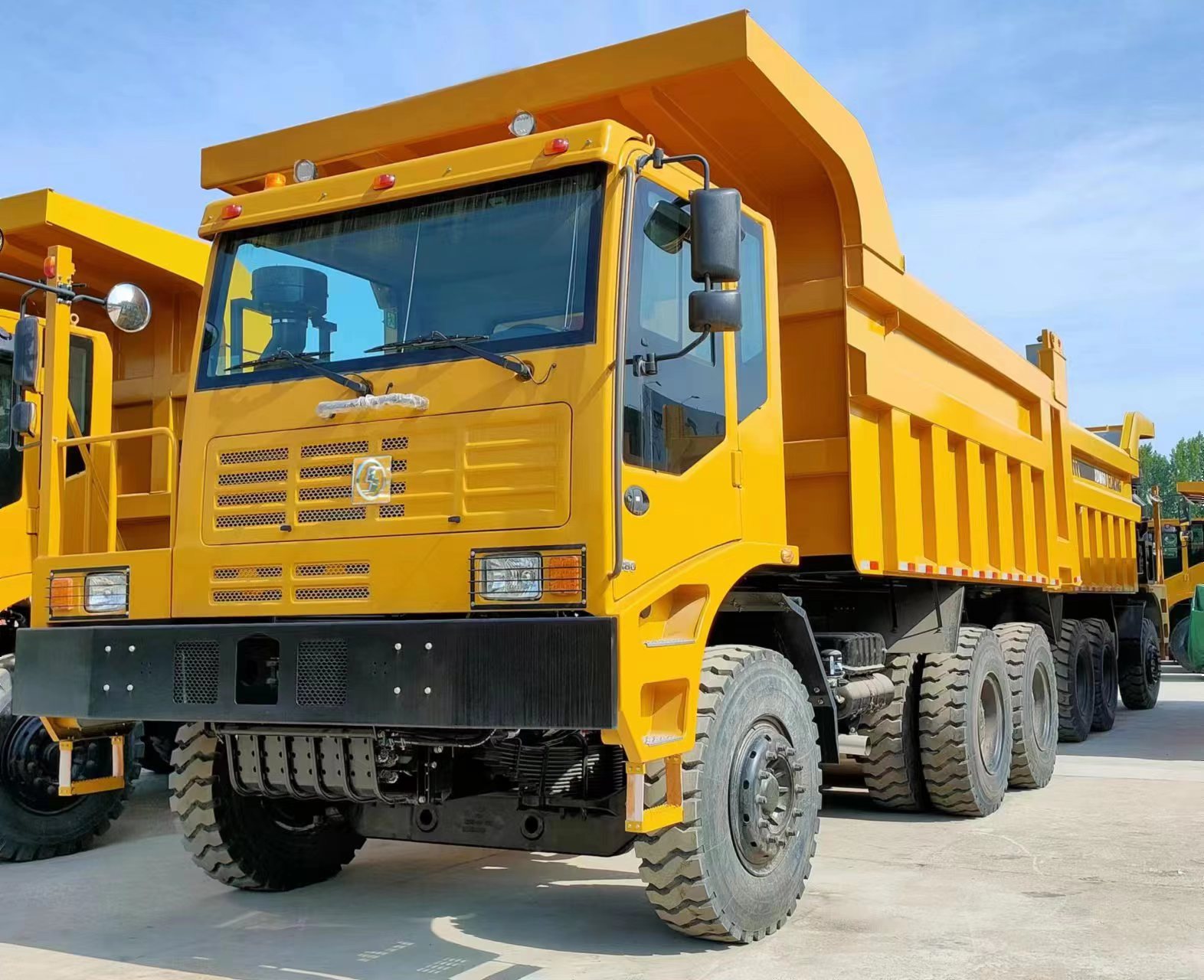

SHACMAN 6x4 90 Ton Heavy Mining Dump Truck
Parameters:
驱动形式 Driving Type | 6×4 | |
整备质量Curb Weight（kg） | 28000 | |
额定载质量 Rate Weight（kg） | 61000 | |
额定总质量 Gross Vehicle Weight (kg) | 89000 | |
外形尺寸 Dimensions (mm) | 8970x3504x4250 | |
最高时速 Max. Speed（㎞/h） | 40 | |
驾驶室Cabin | 偏置单边矿用驾驶室、颜色工程黄 Offset single side mine cabin, color: yellow | |
动力匹配 Power Type | 发动机 Engine | 变速箱Gearbox |
玉柴Yuchai YC6K480-GT30 | Fast法士特8DS240A | |
前轴轴荷 Front axle | 汉德HAND 25T | |
后桥轴荷 Rear axle | 35T矿用车桥Mining Axle | |
制动系统 Break System | 双回路制动 Dual-circuit braking system 排气制动 Exhaust brake 驻车制动 Parking brake | |
电器系统 Electrical System | 单线制 24V 24V Single wire system 负极搭铁 Negative(Ground) | |
空滤器Air Filter | 油浴式空气滤清器 Oil bath air filter | |
油箱容积 Fuel Tank Volume (L) | 标配 Standard: 600L 铝合金油箱 Aluminum alloy | |
轮胎 Tyre | 后轮斜交胎 Rear: Diagonal Tire 14.00-25 | |
货箱尺寸Container Dimensions（mm） | 标配 Standard: 5800x3200x1800mm | |
货箱板材厚度 Container Thickness(mm) | 底 Bottom 16 边 Side 12 矿用斗带前倾后门Mining bucket with front tilting rear door 前板固定厚度 The thickness of front plate 10mm 材质Material：NM400+T700 纵梁底板排气，加装排石器 Exhaust at the bottom plate of the longitudinal beam and install a stone trap | |
举升形式 Lifting System | 多节前举Multistage front lifting hydraulic system 德普卡勒(DEPPKALER) 196 | |
